why i built this

as mentioned on the games page, i built 2 hytopia games. the first one i built introduced me to an unexpected friction point: getting custom blocky style assets/models for my game. building the game was actually not that tough to do; it was harder to find assets for my game.

i found the best option at the time was meshy.ai and its “voxel” style model generator. but it wasn’t a fit for true block-style needs i had. and i was a bit confused between voxel and blocky. voxel style is a bunch of little cubes that make up a larger thing. blocky means using a single block per part of the model; like for a minecraft person, the head is a single block, the torso is a single block, etc. (what i actually ended up building is a 3d “blocky” style model generator.) anyways, meshy seemed the closest and best option. i didn’t know at the time or wasn’t comfortable trying to download and host open source 3d models like hunyuan.

also, as i would find later, every single ai model, tool, or platform is designed around making high-poly, watertight meshes / 3d models. meaning it’s a single monolithic mesh. they aren’t able to generate true cuboid, blocky geometry. (to be clear, my solution isn’t some genius ai breakthrough, i just built this from the ground up to solve a very specific problem in 3d.) they can generate approximate cuboids, but it’s all a single watertight mesh, the faces of a cube aren’t perfectly flat, the vertices aren’t perfect 90-degree corners. and they’re usually very high poly and relatively large files, which aren’t ideal for a web-based game platform like hytopia.

also, texturing is usually baked into the overall process and does NOT support the really nice, truly pixelated look associated with blocky models / minecraft / hytopia. and every single texturing tool out there that can be run without a corresponding mesh generation pipeline is designed for higher resolution textures/atlases.

so, i saw this as a big gap in the market of ai and 3d. i also thought it would be very helpful to build for hytopia, because as more developers come to build on their platform, they’ll need models for their games, and a tool that can generate models for them would probably incredibly useful. this is a community i really liked and wanted to support, and i saw this as a great way to do that.

why blocksmith is different

i mentioned that (1) every state of the art ai model outputs a high poly mesh and can only approximate cuboid shapes, and (2) they output monolithic meshes. blocksmith was designed from the ground up to solve both of those issues.

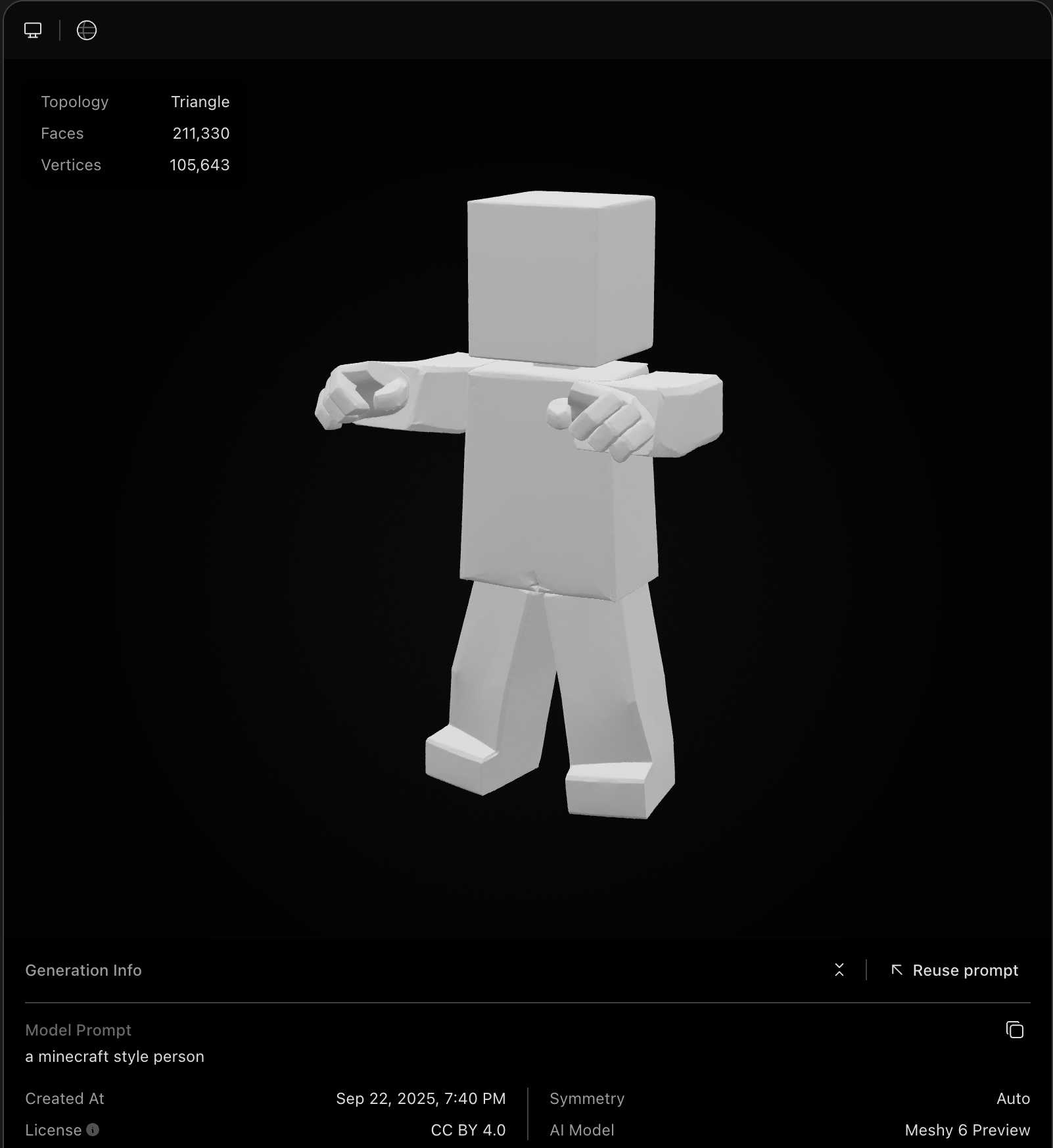

here’s an example of a model generated by meshy: Meshy AI

it actually looks pretty good; meshy is definitely a state of the art option for 3d. BUT, take a look at the number of faces and vertices. those counts are high for a block-style asset.

now take a look at a similar model from blocksmith: Blocksmith AI

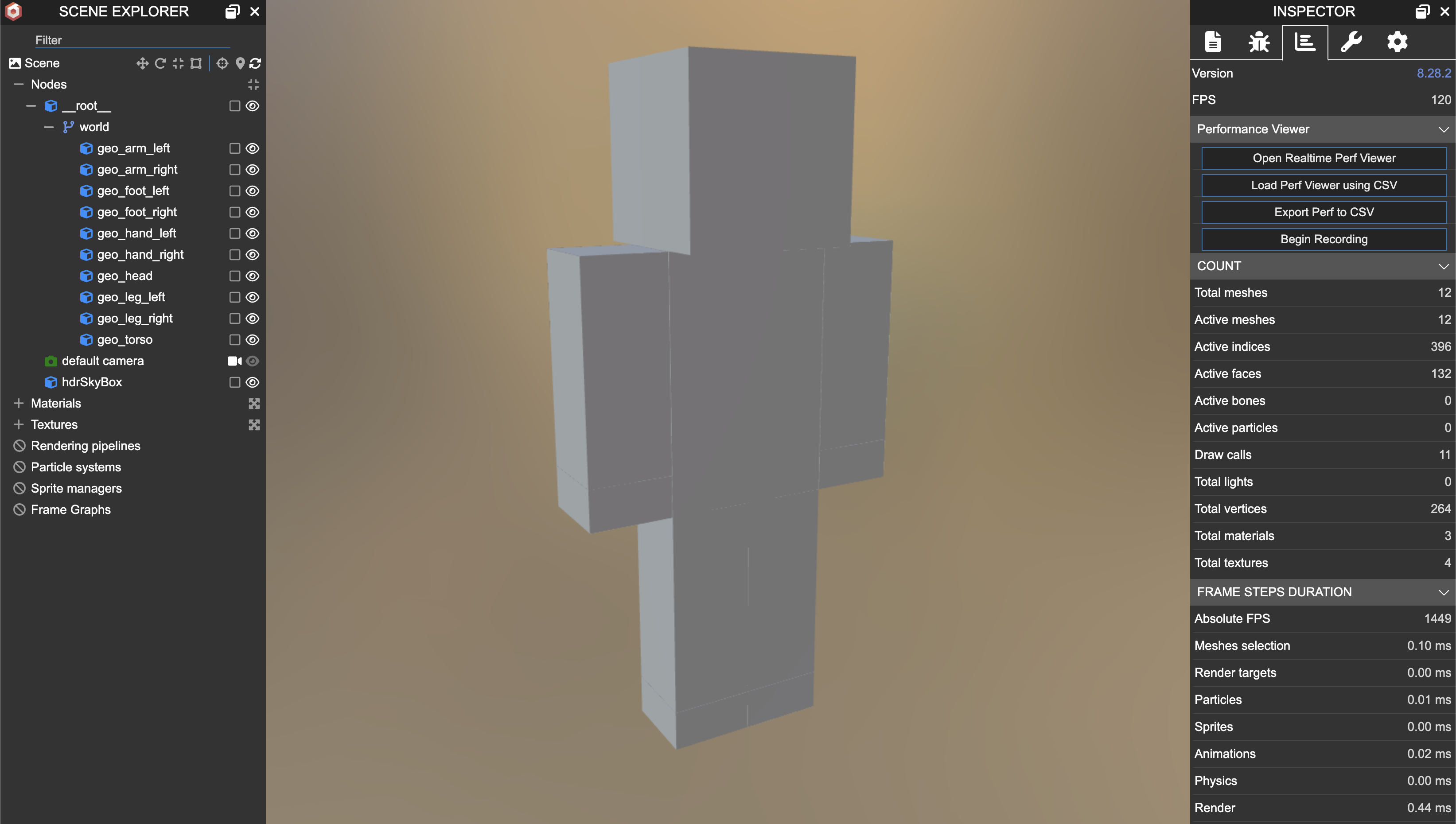

by comparison, this one has 132 faces and 264 vertices.

i’m not able to download this from meshy since it was using their latest model (and i don’t have an active subscription), but i believe it’s still a monolithic, watertight mesh. whereas you can see the blocksmith model loaded into babylon is made up of nice, logically named parts and ready to be animated.

early prototype

the earliest prototype of blocksmith created monolithic voxel style models. at the start of this whole process, i had ZERO experience in 3d, and ZERO experience with minecraft. i wasn’t thinking about monolithic meshes or meshes composed of multiple parts, true cuboidal shapes, file size, faces and vertices counts, etc. those weren’t even on my radar.

after lots of experimentation and brainstorming, i found a pipeline that worked:

it was super simple, but the first nugget of something interesting! here’s my x post announcing the first version of it.

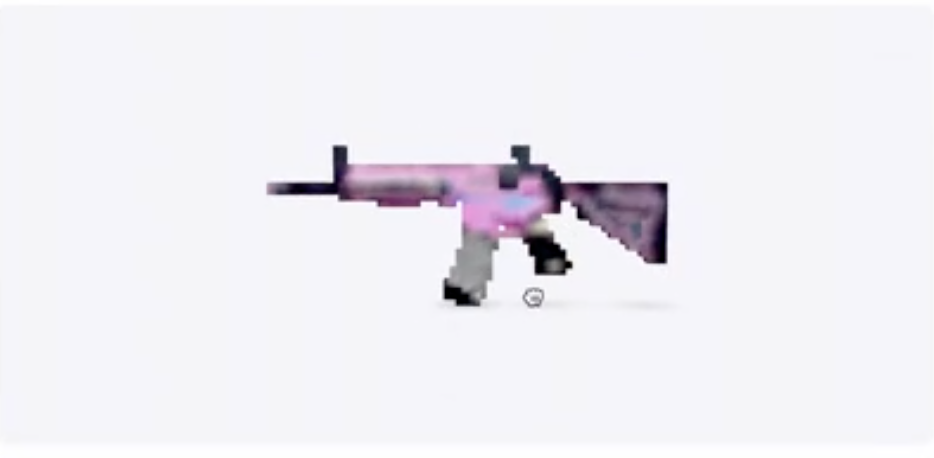

the coloring of the models in this version looked like some kind of airbrush technique. Asset Hero Model. a big part of the reason is that i wasn’t using nearest filtering vs lanczos, i think. but i spent a long time trying to figure out how to solve this coloring.

i also got hints from the hytopia team engineers who were more well versed in this area, and they explained to me how and why these models are not optimized. so that sent me down the rabbit hole and i continued from there.

i eventually switched to a more advanced generative process that became the foundation of what it is today.

model generation overview

as mentioned in the section above, i eventually discovered a more robust generative process to create block style models composed of several parts, as opposed voxel style, monolithic meshes. without revealing too much, i came up with a custom process that allows an llm to output a series of mesh parts that can be composed into a full model, with semantic node names and even allowing for a hierarchy to be created.

what was interesting about this is that i think if i was more well versed in the world of 3d and ai models and how to read/apply research, i probably would have spent time trying to come up with an over-engineered solution. the fact that i was so naive may have been a kind of superpower because i tried something that would probably seem dumb to some really smart researchers, but it just happened to work.

the result of this process is that i could (1) output a truly block style model that was ~optimized (minimal geometry) and ideal for web-based games (specifically hytopia), (2) with semantic node and group names, and (3) in a relatively short amount of time and with little compute power relative to SOTA 3d ai models.

this was HUGE because it meant that i could:

here are some demos from my x profile:

the texturing at this point was still VERY basic. but i learned a whole lot about it that i’ll share below.

the version of the model generation pipeline (not texturing) that’s live on blocksmith today (as of September 2025) is very similar to this original version, but has been improved and optimized to allow ai to create more highly detailed models while saving on output tokens.

texturing pipeline

this is where i’ve spent a bulk of my time over the last several months. there was a ton of stuff to learn here regarding how to generate textures for these block style models.

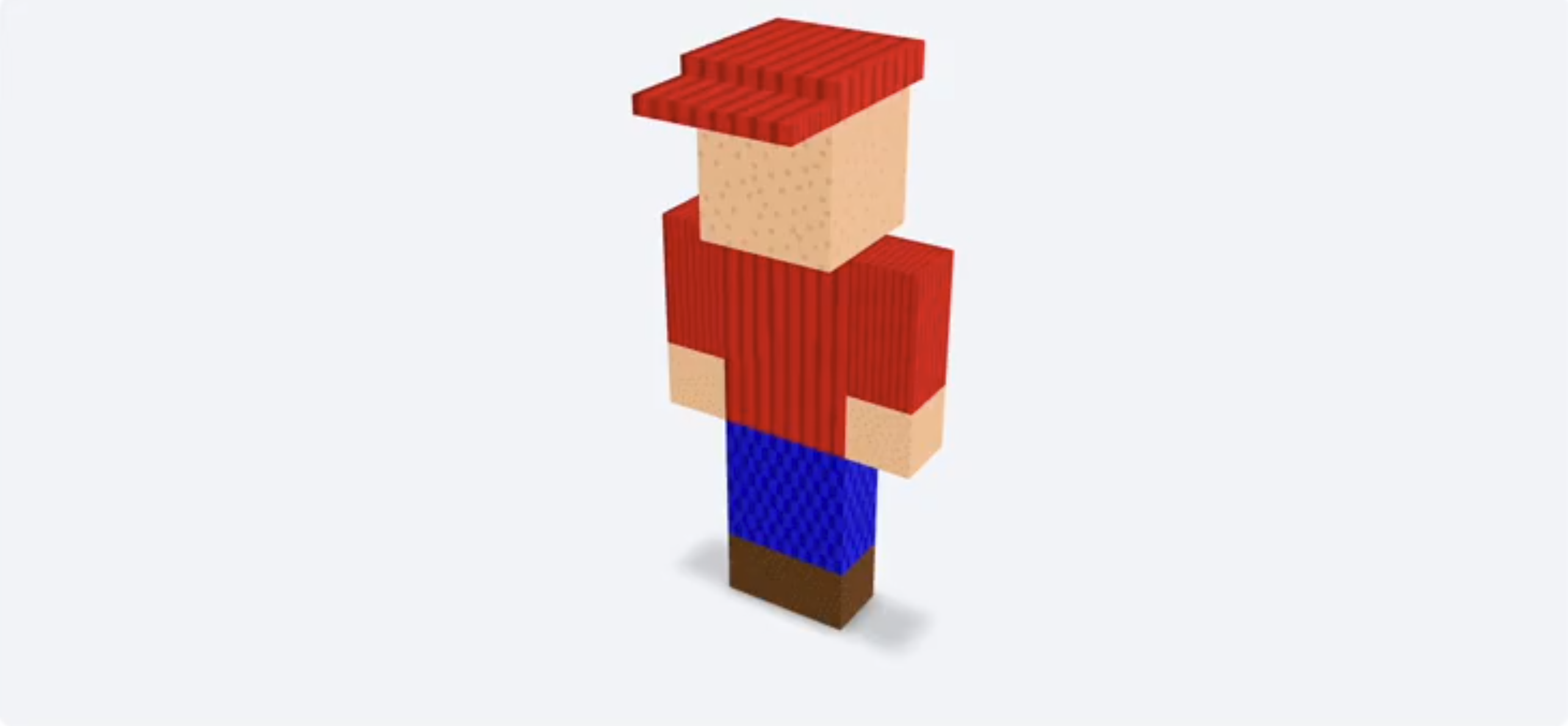

here’s a quick screengrab from one of the old videos of the original model gen + texturing pipeline (from april 2025): Asset Hero Person Model

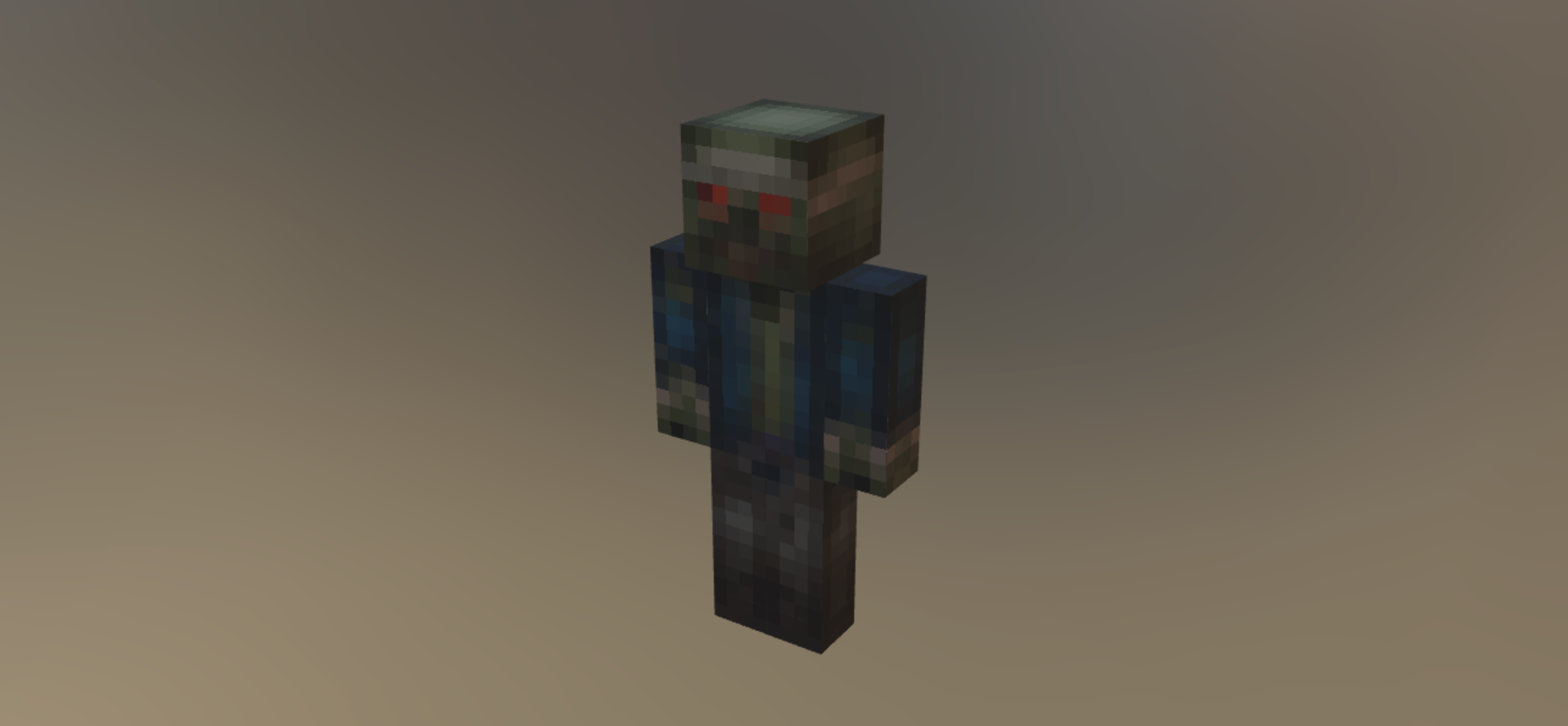

and here’s the latest texturing engine from blocksmith and a zombie model it created and textured (from september 2025): Blocksmith Zombie Model

there’s still lots of room for improvement, and i have a much clearer path for progression than i used to.

the current version of the texturing pipeline:

this was the culmination of a LOT of trial and error and dead ends that drove me crazy.

where existing tools struggle

pretty much every major 3d pipeline / tool / platform at the moment has a combined mesh generation and texturing process. and it makes sense why given how those models work. as a quick intro, these models fail for a few reasons:

there are potentially other reasons these tools struggle, but that’s a good summary of the major points. not to mention that trying to make a simplified, blocky version of a real world thing look really good takes some artistic interpretation and intuition. and this is just not a style that’s captured well in the training data sets for image generation models. this data is much less abundant compared to other styles.

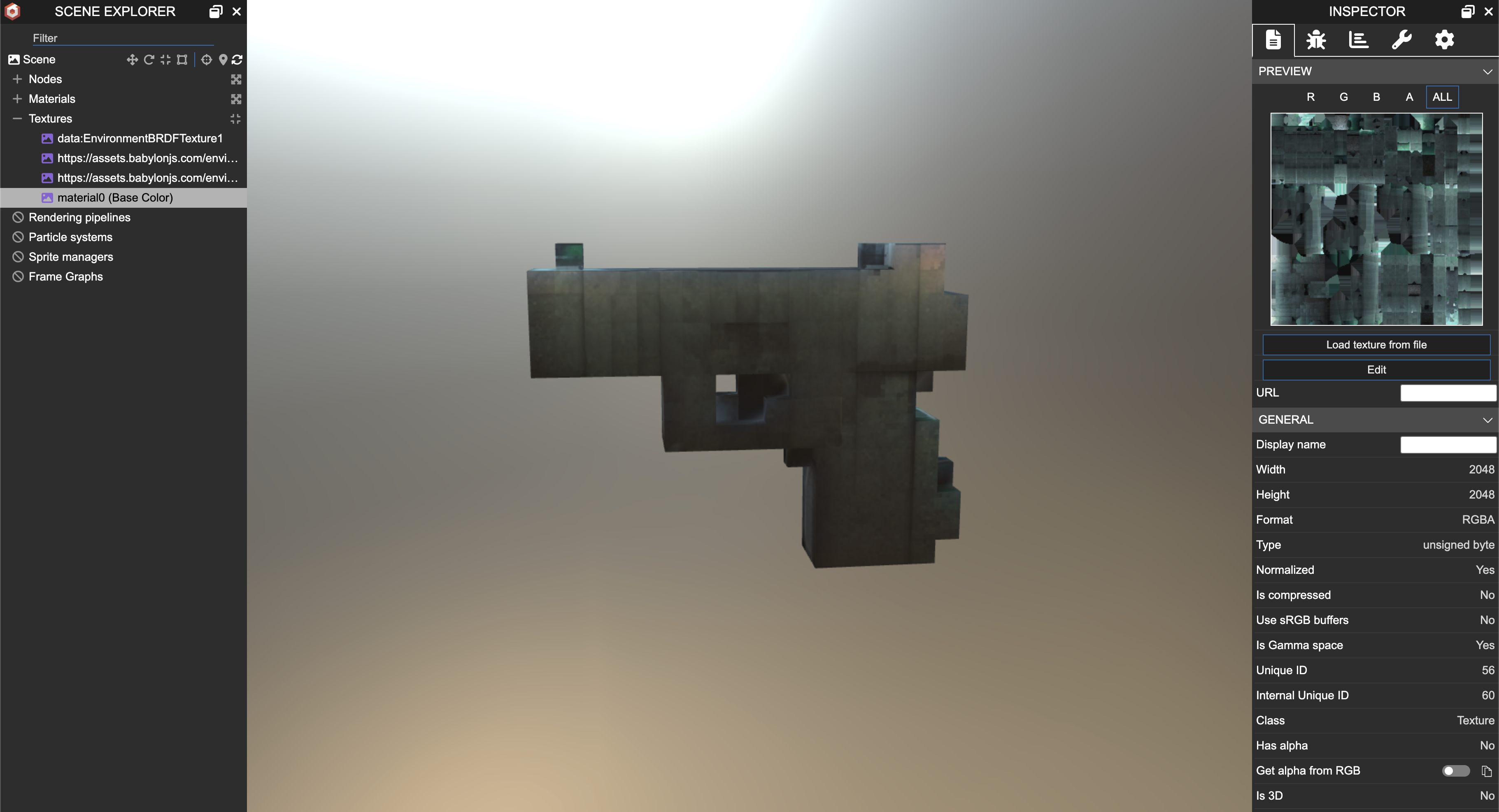

to illustrate my point, here’s an example of meshy’s attempt to paint a handgun model with a pixel art style. you can also see that the texture image is 2048x2048; very high resolution! you can sort of tell if tried making it pixelated, but it doesn’t have a minecraft-style vibe. a result of the fact that it’s just not designed or trained to make textures in that style. Meshy Pixelart Handgun.

requirements i needed

you can pretty much guess what my requirements were based on everything i said above. basically what i needed is the following:

  1. a separate process that could take my model and paint it
  2. something that could generate decent pixel art styling
  3. something that could re-use or generate a “proper” 3d block model texture atlas that will result in a pixelated look
  4. something that can paint across seams, but can also apply textures that respect seams when needed.
    • (this one wasn’t mentioned above, but i’ll touch on why it’s important)
  5. (added later) i forgot that another BIG requirement is that my process needs to either (a) respect alpha testing / transparent pixels, and/or (b) be able to use transparency intentionally. (b) is MUCH more complicated than (a), so i settled for (a) right now.

my original texturing process was focused on generating really simple square patterns and then squeezing them or stretching them to fit a face. basically, it would create a “texture” for a shirt. one for pants. one for skin. etc. then take that square texture, and force it to fit on every face of a block that should have that texture.

a later version could generate patterns, and then intelligently crop them to fit faces without distortion, or repeat/tile the pattern. and eventually i supported per-face texturing meaning the ai could generate generic texture patterns, and they would get applied without distortions; but then for something like a face, it could generate facial expressions and add facial details.

even as recently as july i still had a texturing process that was only able to paint one cube at a time, meaning that painting a model across seams was impossible.

as i showed in the zombie image above from my latest texturing engine update, you can see that the zombie has a stripe of cloth wrapped around its head. this process allows for painting the entire model across seams, and is also smart enough / capable enough to ensure that some seams are respected. like where the blue torn shirt ends and the pants begin. Blocksmith Zombie Model

texturing progression

i’ll expand these over time, but i’ll try to keep them brief for now and avoid rambling.

earliest versions

i mentioned briefly above that the first versions were super basic. the initial version just created solid colors, one per “material” that the model needed (like a red shirt, blue pants, light skin, etc).

after that i had an llm generate super simple patterns as a square. then each material square would be stretched or squished to fit each block face that required that texture/material.

then i eventually made it a little smarter, such that it would get cropped or tiled to avoid distortion when being applied to block faces.

and finally, i think the most “advanced” version of this would create a base color per material, then would use simplex noise to slightly shift colors of pixels so you could clearly see that it was all pixelated. then i also added the ability for the llm to generate those generic texture materials, and then also create face-specific textures. e.g., a face would the “skin” texture material as a base, but then it could paint on eyes and a mouth to create a face, and even facial expressions.

this was done over the course of several weeks i think. here’s quick demo of the per-face texturing.

first projection attempt

the app’s texturing didn’t progress much for several weeks. i focused on releasing an early version of the blocksmith site and getting that up and running. but i eventually was able to create the first cool version of my texturing engine: very simple camera projection.

i experimented with a few things that led to this point. one was trying to load the model with its texture atlas, where each pixel is a unique color, almost like a unique ID. then i thought i could take a screenshot of the model, and based on the angle, i could see which large “minecraft” pixels were visible, and map them back to the original pixel on the original atlas. there was one major problem with this though: lighting in the rendered scene (along with other things) changes the color slightly, and just enough that it becomes nearly impossible to accurately recognize each unique color and its ID.

so i came up with another idea. i had ai write a script that could take the cubes of a model, and generate orthographic renders of front/back/left/right/top/bottom. the way it worked was like this:

the result is almost as if you took a screenshot of the model from the exact, perfect front angle. except each extracted cube face is just a black outline, and everything else is white.

so you could use this process to generate orthographic front, back, left, right, top, and bottom “views” of the model. my goal was then to use a diffusion model that supports canny edge guidance (i.e. that could paint inside the lines you give it), and see if it could paint these visually vague views using some prompt engineering techniques.

the result was that, YES - we could get some sane looking images using this technique! now, what was nice about this is that it was easy to paint my model. i could essentially reverse the process the generated the orthographic view, and i knew which regions of the image belonged to which cube faces. so i would just crop the painted image and apply it to that cube’s face. there was a little more to it, but this is a simple explanation.

here’s a demo video showing how my process worked for painting one side of a model (that i think was meant to be an industrial drill kind of tool). as you can see, only one side of it was painted, and the rest of the model is still gray.

however, i was using replicate at the time, and after testing with several models, the best one was pretty expensive at ~$0.05/image. so if i wanted to paint all 6 angles of the model, i would end up having to charge for > $0.30 to maintain some kind of margin. but not only that, since each process ran independently, they might look TOTALLY different.

so what i settled on was this:

with this process in place and working, i would only need to spend $0.05/texturing job (at least for the replicate.com api call).

now i need to solve yet another problem. we’re only painting 4 views of the model. not to mention the fact that there might even be occluded faces from each of these views that also need to be painted. so i solved this the simplest way i could think. basically, i creating a json mapping that showed each cuboid and face of the model, and which ones had texturing, and which ones didn’t. then i instructed the llm to use the prompt, along with this data, and output a full “texturing strategy” that gives me 100% coverage. its goal was to help take painted faces, and which painted faces can/should fit onto other unpainted faces, to create the most cohesive model possible.

and in many cases, this actually worked. this silly, hacked together process was able to do a decent job.

here’s a demo video showing off the full model texturing version of this pipeline (which is actually still live on the site, btw!).

from here, i really wasn’t sure what to do to continue improving it, but i was confident i’d figure it out.

improved per-block texturing

the above projection attempt worked well on some things; but on models that had lots of narrow parts of small details, it would fail miserably.

around the summer time (~early july 2025), i made a pretty big jump in model generation capability where blocksmith could now output more detailed models at a lower cost on the backend, and with higher accuracy.

here’s an example of a grand piano model it made, including making EACH piano key a separate block. this would have been impossible to do with the original version of the model generator that i was using.

so now that i was able to generate models with much higher detail, the simple projection texturing pipeline i had would no longer work very well. so this prompted me to come up with a better per-block texturing version that could help in these cases. it would be as nice, it wouldn’t be able to paint across seams, but it would be usable.

what i ended up finding out is that replicate.com has a few small and cheap models that are decent at generating tileable textures. so i came up with a very simple process that looked like this:

the result is pretty nice for some things, and this became my go-to texturing method for lots of models.

here’s a demo video showing off how well it could do. i thought it was really nice given how simplistic it was.

creation of the latest pipeline

the creation of the latest pipeline though was a labor of love. this was ~1+ months of research, trial and error, and dead end after dead end.

what was interesting about the process too is that i was trying to balance depth of research with speed; my ultimate goal was to build the best texturing engine i could, as quickly as i could. i didn’t want to get lost in the weeds for too long and end up not delivering anything. so i optimized for speed and some depth of research, which really just means glossing over some papers and asking ai to help summarize things to me, and mostly focusing on research that also had published code and wasn’t just theory.

for all the different experiments below, it’s also worth noting that i acquired 3d block models for training data ethically. i manually went through sketchfab and downloaded models that were (a) available to download (as opposed to ripping them from the sketchfab renderer), (b) allow for commercial use, and (c) did not have an explicit “no ai use” clause/statement.

3d-aware 2d diffusion

given the requirements i had above, i thought the easiest thing to do, if possible, was to try and see if i could create some kind of controlnet adapter that could help prime sdxl to paint a 2d texture atlas with some 3d awareness.

this would allow me to paint across seams, re-use a generated atlas, and even potentially apply transparency. this was doomed to fail from the start, but i wouldn’t know that with certainty unless i tried.

i ended up working with ai to create a script that would take each pixel on the texture atlas, and find its position in 3d world space as x, y, z. the goal was then to normalize each x/y/z value to fit within the range of 0-255, and the mapping would be: x => red, y => green, z => blue. we would even generate normalized position colors for pixels that are transparent in the final texture atlas.

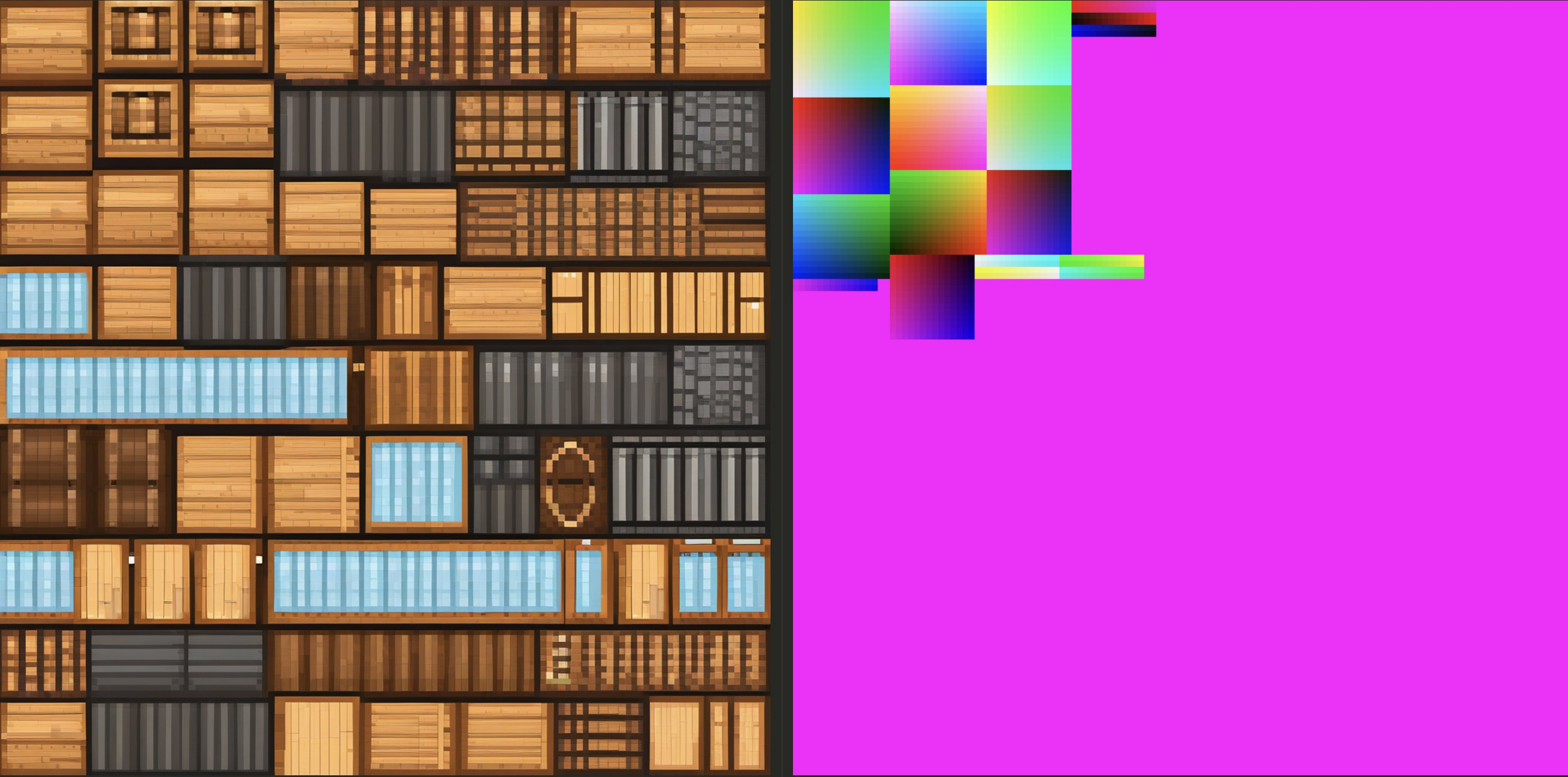

so what we would end up with is the original textured atlas with all the coloring already applied, and our 3d-positional atlas, where even transparent pixels in the final atlas are given a color and position. the hope is that sdxl would learn to use transparency in an artistic way.

since i mentioned transparency, it’s worth noting that sdxl does NOT support RGBA; it only supports RGB. so instead, i opted to map transparency pixels where alpha = 0 to 0xff00ff (magenta). based on all the models i’d seen up to that point, i was confident it would be a safe color to use.

i then worked with claude to create a modal script that would have a persistent web endpoint for diffusion, and that could use use controlnet canny edge guidance. once that was running successfully, it was time to run some tests. in order for this to work, we need edge guidance to ensure that sdxl knows what uv islands to focus on painting. i found that controlnet struggles to help provide edge guidance for regions that are smaller than 8 pixels in width and/or height. and this is a problem because it’s possible for a block face in a model to have a 1px texture.

this makes sense why it struggles i think because sdxl’s core architecture of a unet downsamples images, and it’s possible that in the final downsampling steps, regions that are too small end up getting lost. so what i found was that upscaling each atlas by 8x helped controlnet in guiding sdxl’s ability to paint all uv islands fully.

so this now sort of limits us. if we need to upscale each atlas by 8x, that means that if we’re targeting for an input and output image from sdxl of 1024x1024, i can only use atlases that are a max of 128x128 in size. so i decided to move forwards with this anyways since it was just a test.

the training data basically consisted of / was generated by:

i also had a separate process for generating prompts for each model, where i rendered each model in a scene, took screenshots of it from multiple angles, then passed the screenshots to a multimodal model to caption it in a way that’s appropriate for a diffusion model like sdxl.

now it was time to write the training script. i’ll be honest and say i did not handwrite it. for most of this entire process, i worked more as a product manager guiding ai, then stepping in, fixing, and rearchitecting things when needed. but keep in mind my goal at the time was to move as fast as i could to getting a usable and improved texturing engine. so i felt comfortable between claude opus 4, gpt 5, and gemini 2.5 pro each checking each others’ work to make sure we were building this training script correctly. but it did fairly well here since there’s lots of examples on how to setup a lora finetune script for sdxl.

since many of the atlases are mostly empty space (now magenta), we needed to create a mask based on the 3d-aware atlas that focuses training only on uv islands / regions that are in use. this was done because the majority of the atlas is unused, so sdxl would only be learning from a very small part of the atlas being painted and the rest would just be noise.

we also wanted to make sure the model was learning something. so this is also where i learned about the timesteps involved with the diffusion process of denoising. we tried measuring loss using something similar from a previous lora fine tune attempt of an llm. but when adapting it to sdxl lora, it was all over the place because it wasn’t checking a consistent timestep. so i learned we need to check at a consistent timestep every single time to get a better understanding of whether or not the network was learning something.

after lots of experimentation and tweaking with gpt, claude, and gemini, we were successfully able to prove that the network was learning something. but this wasn’t going to be a viable path. the way i knew it was learning something though is the following:

below is a screenshot showing what the sdxl output was for a novel model (which was a wooden block model barrel), and the 3d-positional atlas created by my data pipeline. you’ll see it still painted the entire atlas, but it somewhat stay in the lines. and this actually was an okay output for this model. but it turns out that was just luck because this model was very simple. SDXL 3d-aware Diffision

i realized after training that i just did NOT have enough data to really have controlnet learn to work with sdxl to condition it for 3d-aware diffusion on a 2d atlas. i thought i needed more data. so i came up with a new strategy: train controlnet + sdxl on a broad dataset of 10k+ models to learn general 3d-aware diffusion on a 2d atlas. THEN, i could use my block model atlases and fine tune on top of that.

i found step1x-3d, which is a 3d ai model, a while back. i recalled in their documentation that for their texturing pipeline, they had a curated set of 30k high quality textured models from the objaverse 3d model dataset. so with claude, we came up with a script that could use the objaverse model IDs to pull the models down and download them in large batches. i think i only ended up taking ~15k models, and it ended up being ~40-50GB of data. but similar to previous data clean, i needed to make sure that we used models had atlases that were 1024x1024, and that they only had one atlas for the entire model.

i think my training script training script was pretty much ready to go without needing any major changes, so i ran a much longer fine tune job across 10k good models filtered from the the set of ~15k models downloaded.

after it was done, i tried testing it out in some way that could demonstrate whether or not it learned anything. and it failed.. hard. i realized though that some of these atlases were setup in such a way that there’s almost no way for sdxl + controlnet to work together and figure out what was what. the unwrapping of the model onto the atlas was highly non-deterministic, and semantically it made no sense. it would go from one object made of one material, and blend right into another object made of completely different material. i even tried just simple tests that would show me if it learned to paint like with hints like “paint the (thing) at the top green and everything else wood brown”, and it couldn’t do it. not even close.

perhaps with more time i could find a way to make that work, but it would require more deterministic unwrapping, a deeper understanding of how controlnet influences sdxl, etc. but it was a good first shot i think.

manual multi-view with sdxl

before i knew about mv-adapter, i decided to try and tackle multi-view diffusion myself. diffusion models can do batch diffusion, but they don’t have any way to share details or information between each one. so my idea was to try setup a diffusion pipeline where i would use controlnet canny + ip adapter. the process looked something like this:

there was a bit more to it than that that was needed to help with backprojection, but i can talk about that later. i knew i could do backprojection, but getting consistent painting of a model from multiple angles was tough.

and this attempt didn’t really work… there were some issues complicating things, but overall SDXL didn’t do a great job of painting in the lines OR using the reference image. i didn’t play around the knobs and dials too much for controled guidance and reference image weight because i didn’t have faith those would be productive tests.

one of the issues is that in my “clay” rendering, i rendered the model with essentially just a gray texture color. BUT, i would maintain any transparency used by the original artist. for 3d block models, transparency is used to create layers or more complex shapes that a cube can’t express. below is a minecraft-style skeleton to illustrate. the torso is actually a single cube, but the artist used transparent pixels for that region of the atlas to give the skeleton that hollowed out look.

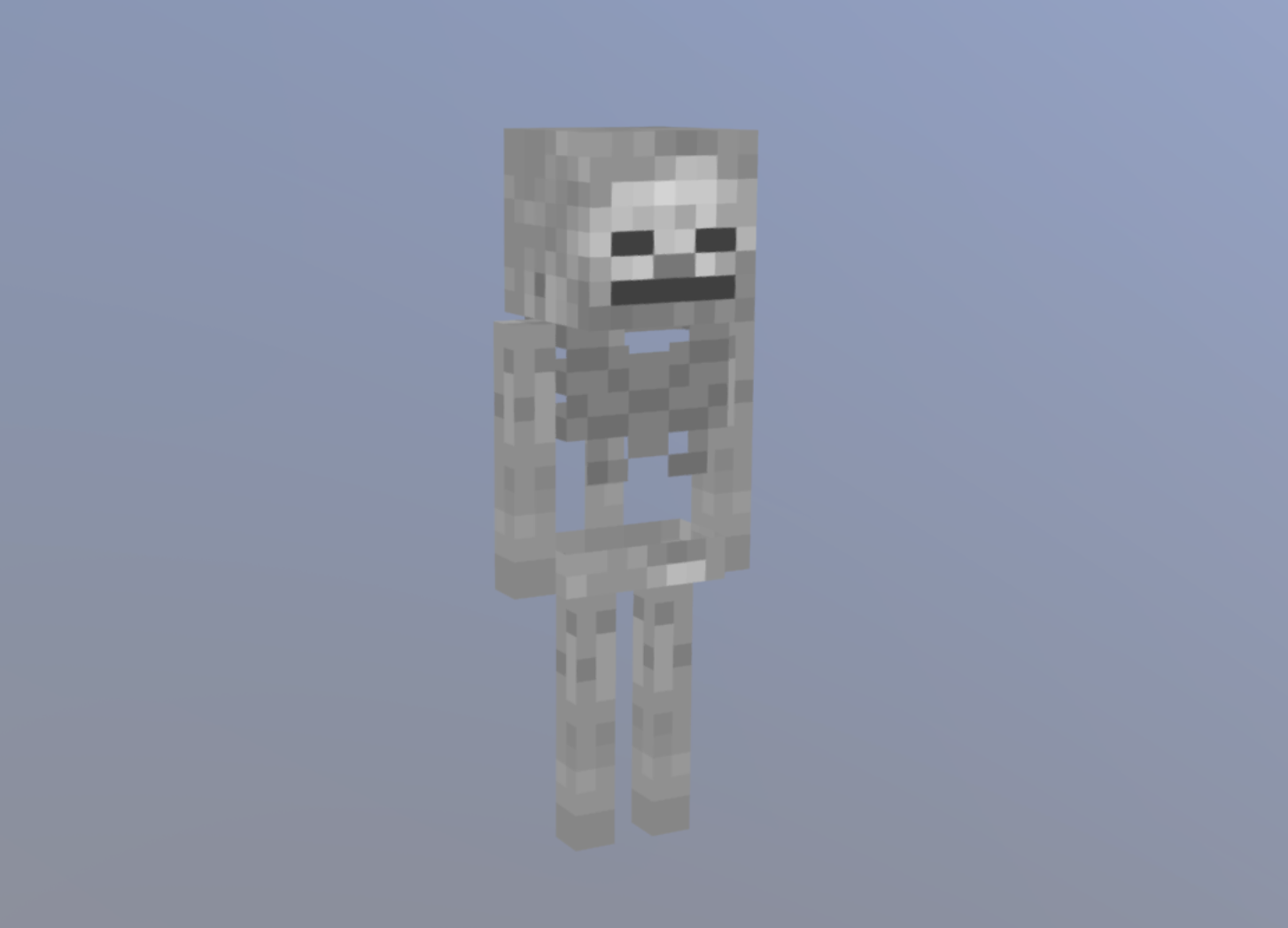

Skeleton Image

transparency in a 3d cube is fine and rendered off-screen just fine. the issue was more with 2d planes that had transparency. technically, a 2d plane has 2 faces: a front and a back (or top and bottom, or left and right depending on the orientation). if you paint BOTH sides of the 2d atlas, you get a weird flickering effect because both sides of the plane are rendered in the exact same place, and so the renderer struggles to figure out which color/texture to show you. so it flickers, and it’s pretty annoying; one term to describe this is z-fighting.

to fix this, most block model artists make one side of the 2d plane completely transparent. in tools like Blockbench, it automatically defaults to just showing the opposite side of the texture (just mirrored). but in other renderers, sometimes the default is backface culling, which means that if you’re looking at the side of the 2d plane that’s transparent, the entire 2d plane disappears. the renderer will only show the front-facing pixels when you’re looking at them, but from behind, you won’t see those pixels at all.

to illustrate, take a look at these two clay renders of a sword. the sword’s guard and tip are a 2d planes (that used transparency to make the shapes more interesting) that used our trick of making one side completely transparent to avoid z-fighting.

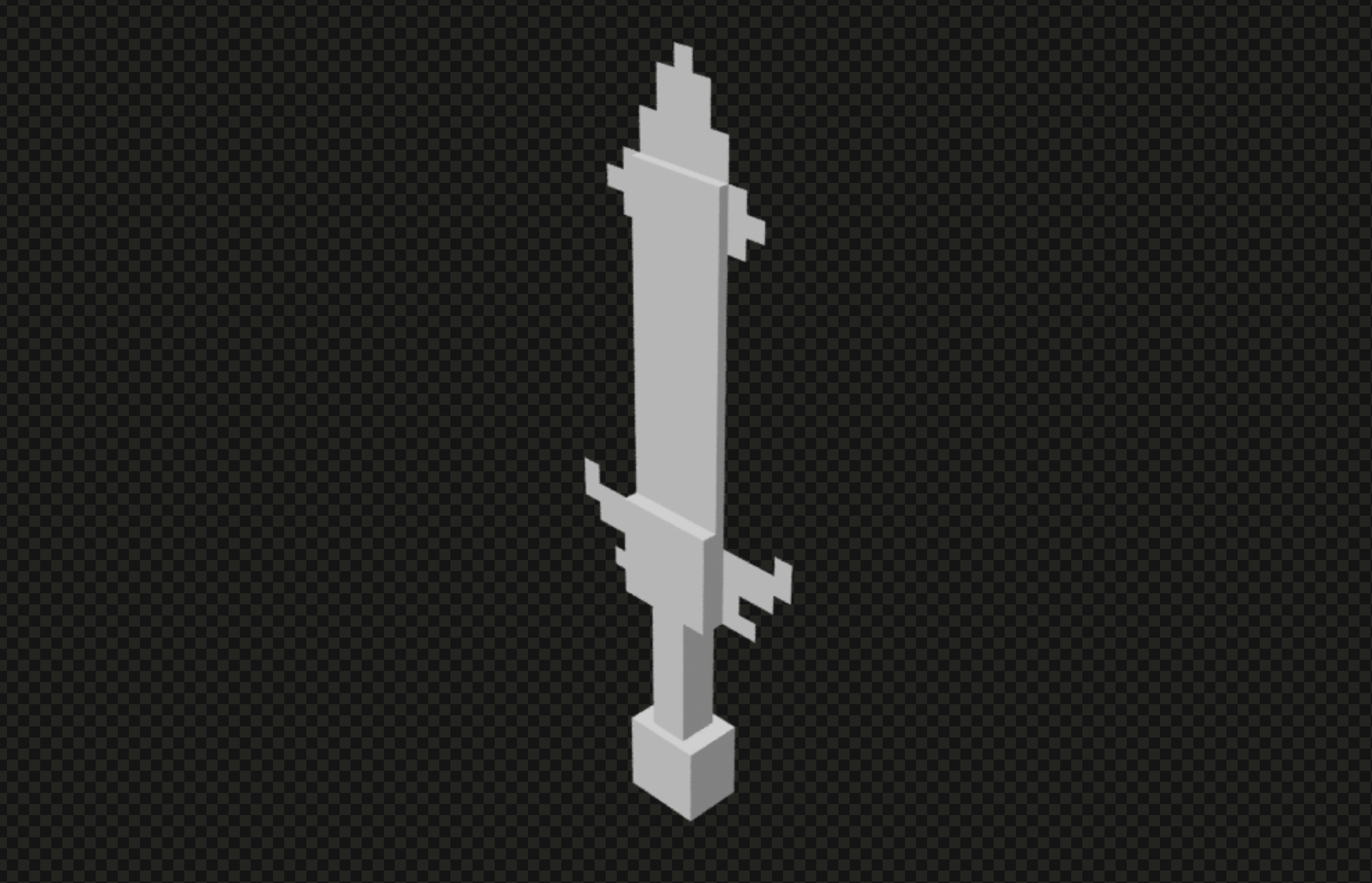

here is a front oblique view of the sword: Sword Clay Render Front

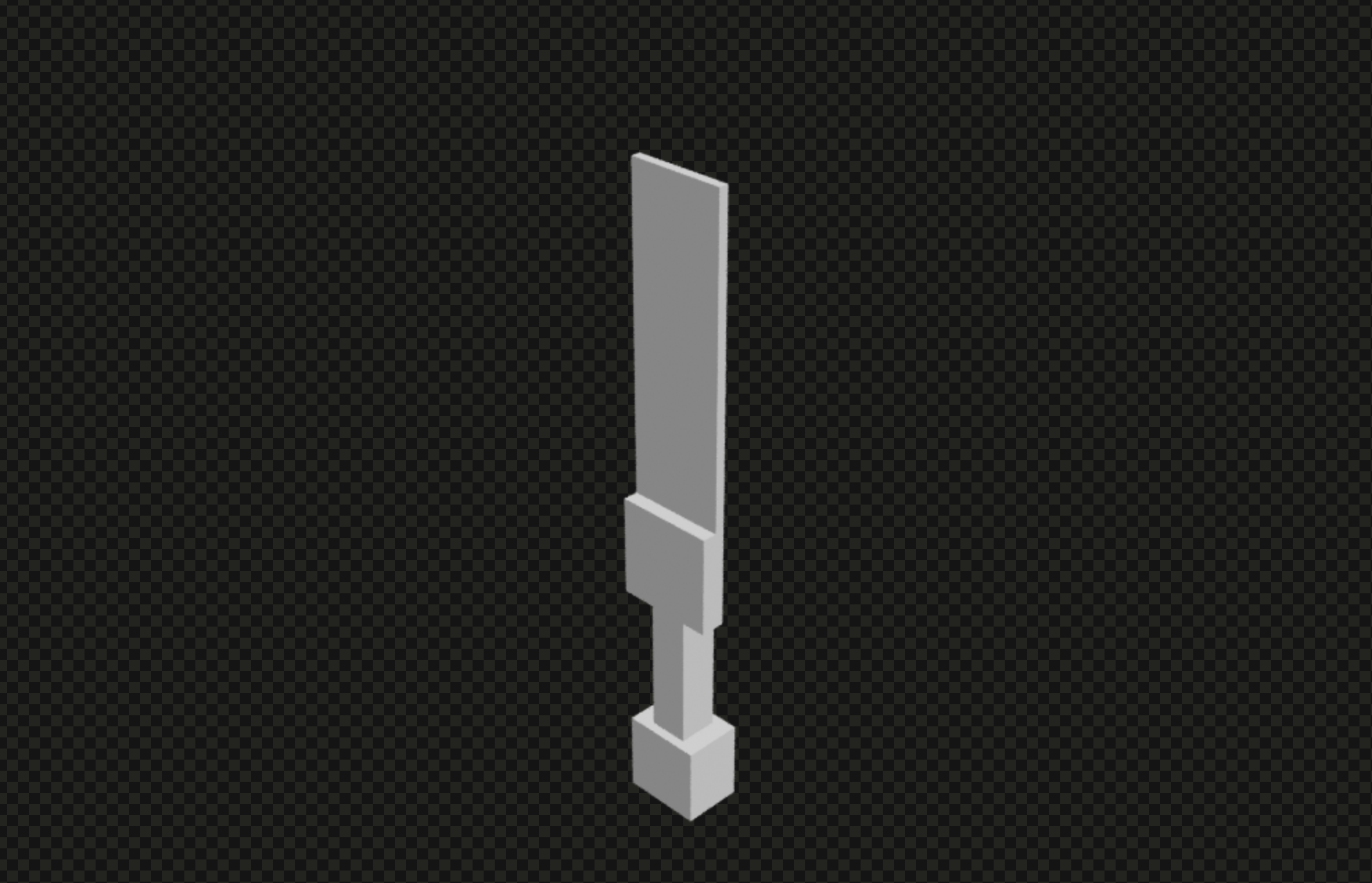

and here is a back oblique view of the sword (180 around the model): Sword Clay Render Back

you’ll notice on the back side, the tip and guard are completely gone. that’s because with this setup, we were doing backface culling. and to be honest, i’m not sure why i didn’t investigate the more to NOT do backface culling, because it certainly made things more confusing for SDXL in texturing.

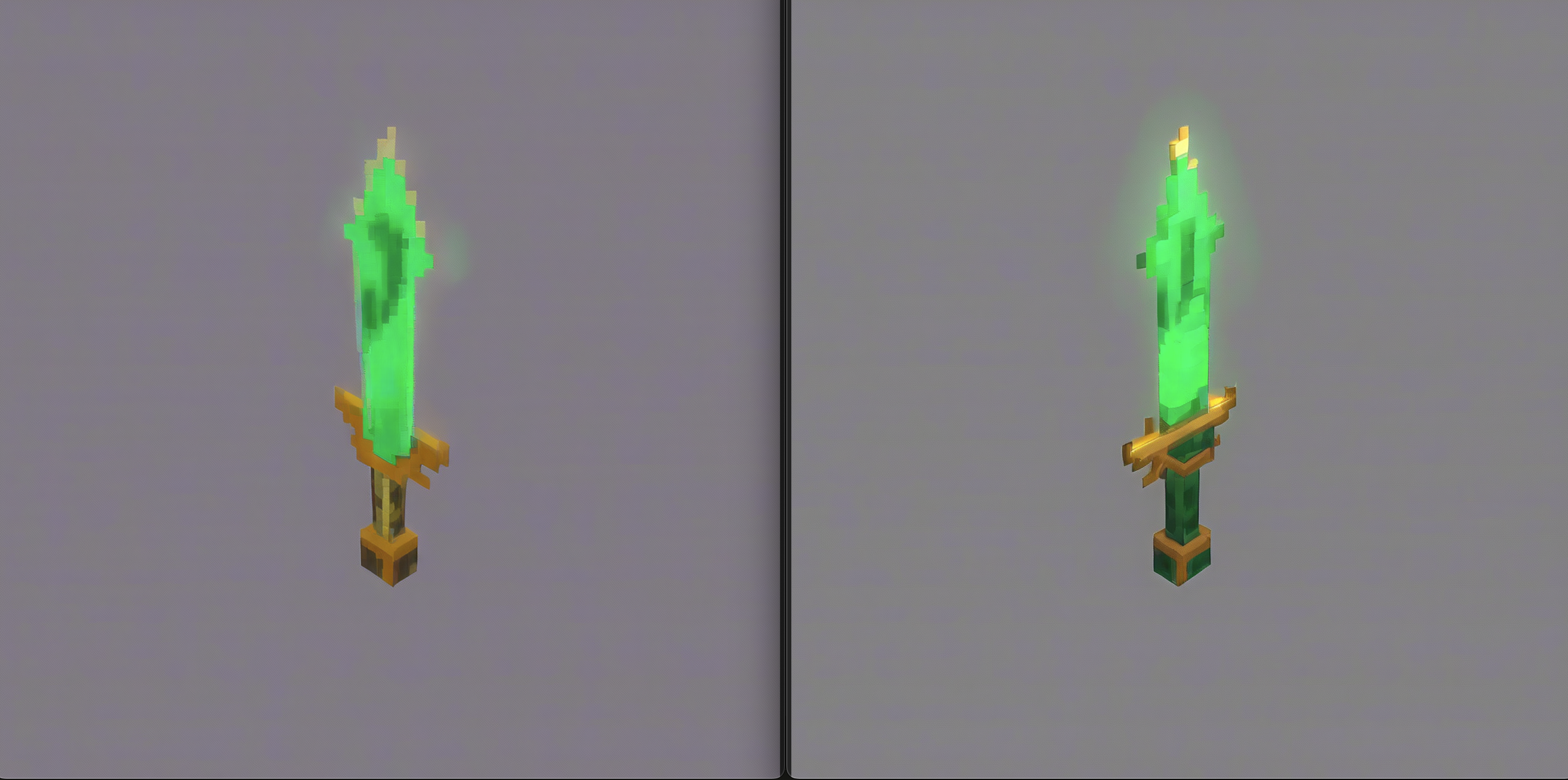

i’ll share a few images from sdxl to give you an idea of how sdxl performed.

SDXL Sword Front Painting

it’s not terrible, and i actually think here i was using a pixel art lora of sdxl that i made from a custom dataset. it’s not terrible, but could be much better. at this point, i was just experimenting but wasn’t super happy with what i saw.

i actually think i could have achieved better results if i picked slightly better camera angles and fixed the backface culling issue. but let’s move on SD3.5 now.

manual multi-view with sd3.5

this section will be much shorter, because it’s literally the same process as the sdxl manual multi-view diffusion process, except with Stable Diffusion 3.5.

the main things to note are that SD3.5 is much newer and doesn’t have years of community support and tooling behind it, and it’s a different architecture. it has a few variants, primarily just a SD3.5 Medium and an SD3.5 Large. and for whatever reason, the “large” variant is the one that has the most community and company support. so in order to use controlnet and ip adapter, i needed to use the “large” version.

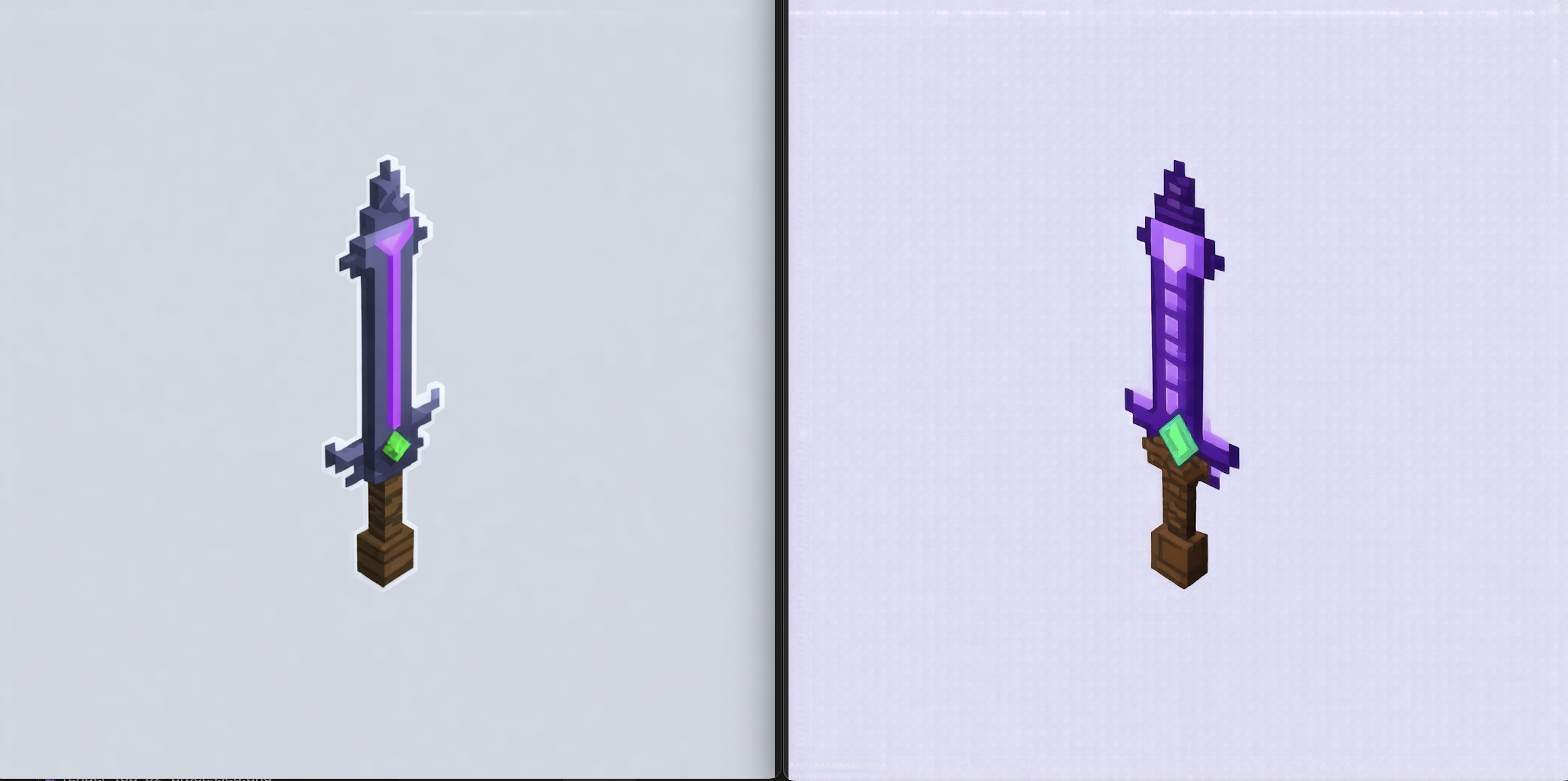

it did do noticeably better, but still not all that consistent. below is an example of the same model.

SD3.5 Sword Front Painting

this is where mv-adapter comes to the rescue! (sort of)
